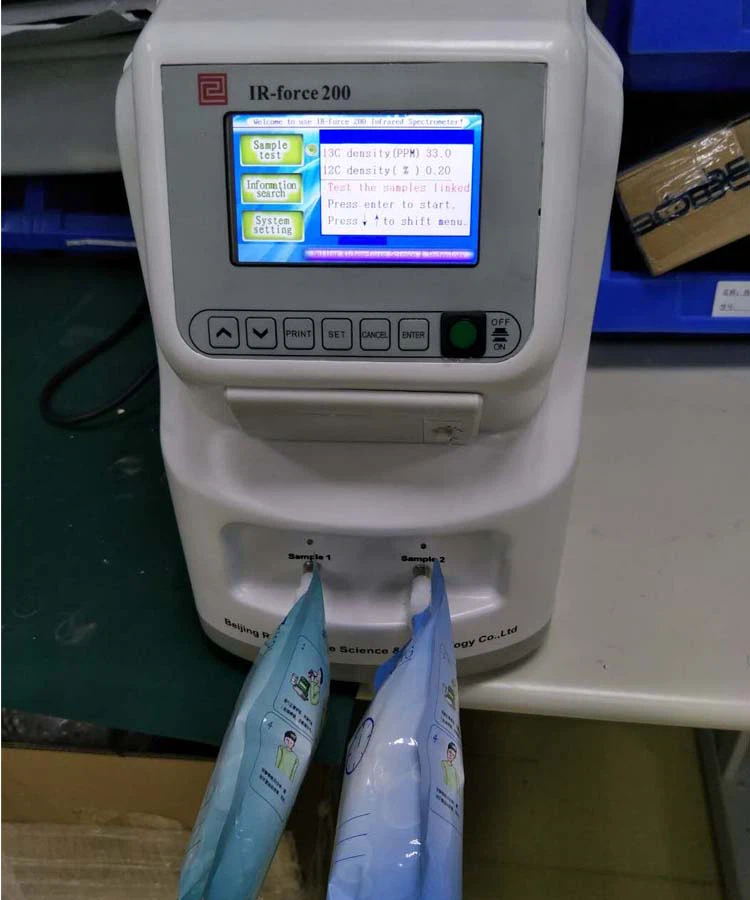

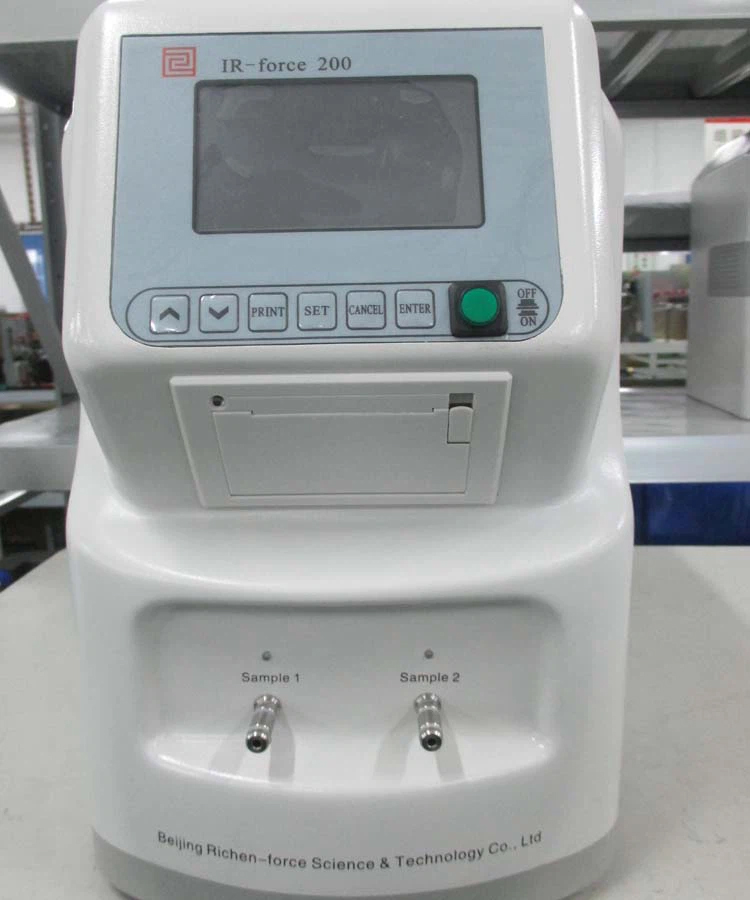

13c UBT Diagnosis h.pylori Device
The 13C ubt diagnosis h.pylori spectrometer IR-force 200 is composed of high selective 13CO2 and 12CO2 detectors, which are used to analyze the CO2 exhaled by a patient in order to diagnose whether this patient is infected by the H.Pylori.
IR-force 200 Specification:
Model IR-force 200
Source of power Alternating current 100-240 V, 50 Hz / 60 Hz
Power consumption ≤60ВА
Measuring range CO2 concentration 0.5% ~ 10%
Sample volume Not less than 120ml / packet
Instrument weight 12.5 кg ± 2кg
Dimensions of the main device (480мм ± 20мм)×(230мм ± 20мм)×(370мм ± 20мм)
IR-force 200 advantage:
1. High accuracy: the relative error is lower than 0.3‰δ 13C
2. Easy to use: collect the patient's samples and let the IR-force analyze the samples and print the
results automatically.
3. Test speed: each sample is analyzed in only 3 minutes
4. Strong data management: the software allows storage, search, sort and statistical analysis.
5. the device has 2 unique features : automatic self-test and remote diagnosis. The user can
quickly and easily understand the operating mode of the IR-force thanks to its unique self-test,
self-diagnosis, self-calibration and self-restoration functions.
6. Low cost operation.
7. Intuitive operating interface with multi-language options.

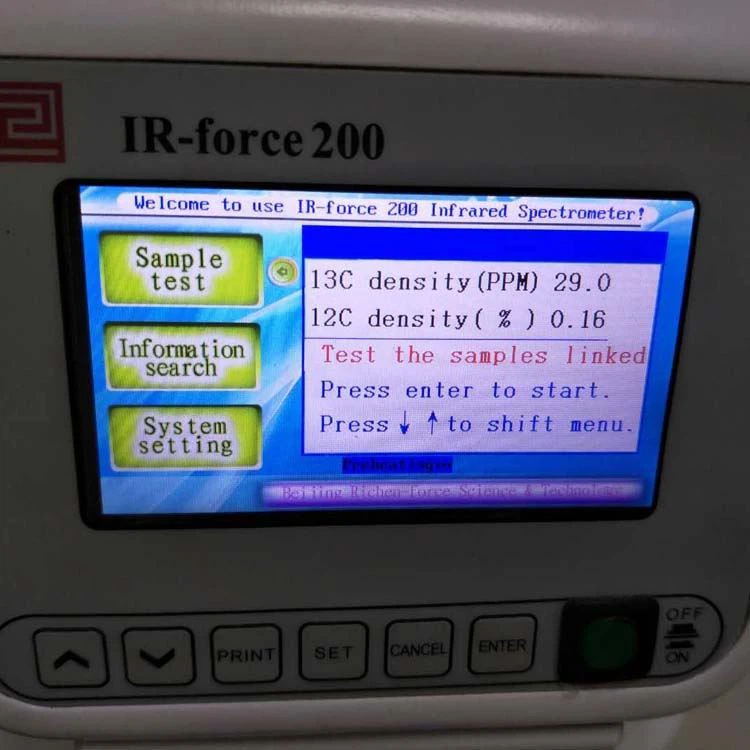

IR-force 200 Screen:
Friendly software operation screen: English operation screen, easy to use.
Combined with 13c urea breath test
Easy operation:
1. Start the equipment;
2. Collect patients' breath samples;
3. Machine automatically analyzes and prints the report;
Quick test: Each test takes less than 3 mins;
Powerful database management: The software has memory, check, sort data and analysis functions;
Self-checking function: Unique self-diagnosis, self-adjusting functions. Users are very well informed about its working condition;
Low cost operation: Low power, no other gas consumption;
Package & Delivery:
We use standard wooden case package,
We delivery 13c infrared spectrometer by air within 2-3 working days after receive your payment.
Exhibition show:
IR-force 200 installation:(our engineer will install the device for customer.)
