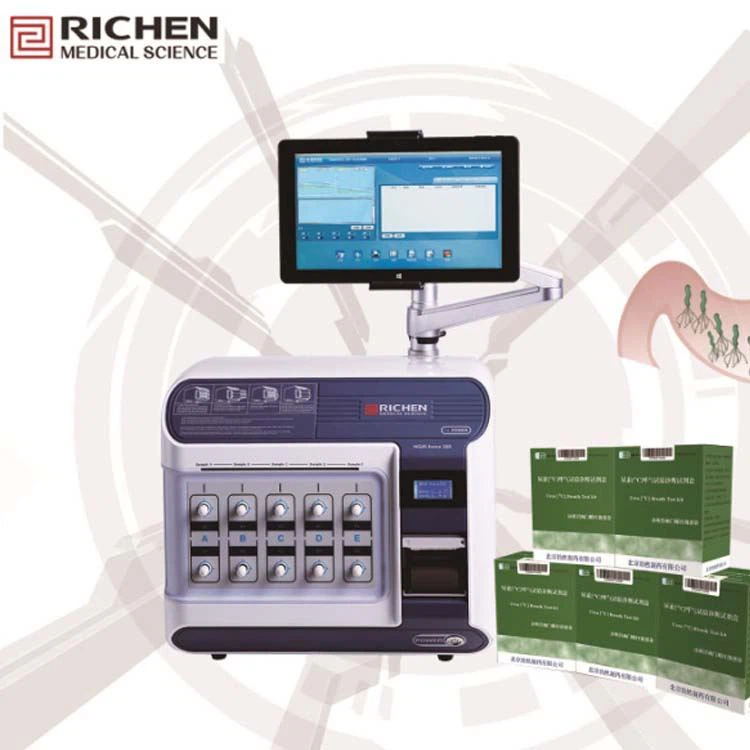

Diagnostic H.pylori Rapid Test Device
The most common, convenient and most used method in clinical practice is the 13c urea breath test method. It is mainly by blowing air to judge the changes before and after, to diagnosis whether there is H.pylori infection. If test DOB value ≥4, the patients get H.pylori infection, they need to regularly use triple or quadruple therapy to eradicate H.pylori, which will help the recovery of the disease. 13c urea breath test need combined 13c infrared spectrometer.
Analyzer Specification:
Model: HGIR-force300P
Collector channels: 5 pairs of channels (5 sets of samples are detected at one time);
Built-in printer: Yes (no need to connect external printer);
Computer connection: equipped with a micro computer host;
Warm-up time: no more than 45 minutes;
Sample volume: not less than 120mL/bag;
Power supply: a.c. 220V, 50Hz;
Input power: ≤180VA;
Dimensions (length * width * height) (mm): 400*360*385.
Analyzer advantages:
Quality control: calibration, positive gas quality control to ensure equipment accuracy;
Precision: δsd does not exceed 0.25‰;
Stability: the absolute value of C.V. is not more than 3%;
Analysis speed: the analysis time of each sample is less than 100s;
Detection sensitivity: CO2 minimum detection concentration: 0.5%;
Measuring range: CO2 concentration 1%~10%.
Normal working conditions：
Power supply: a.c 220V±22V, 50Hz±1Hz;
Altitude: below 2000m;
Ambient temperature: 10°C~30°C;
Relative humidity: no more than 70%;
Atmospheric pressure: 86kPa~106kPa.
Detection principle：
After subjects take 13C urea orally, the urease produced by Helicobacter pylori will break down 13C urea into 13C carbon dioxide and ammonia. The 13C carbon dioxide enters the lungs through the blood and then exhales out of the body. Collect the subjects' exhalation and use an infrared spectrometer to detect the changes in the ratio of 13C/12C carbon dioxide in the exhalation to diagnose Helicobacter pylori infection in the stomach.
Package & Delivery:
We use standard wooden case.
We delivery 13c infrared spectrometer by air(DHL/UPS/TNT/Fedex)

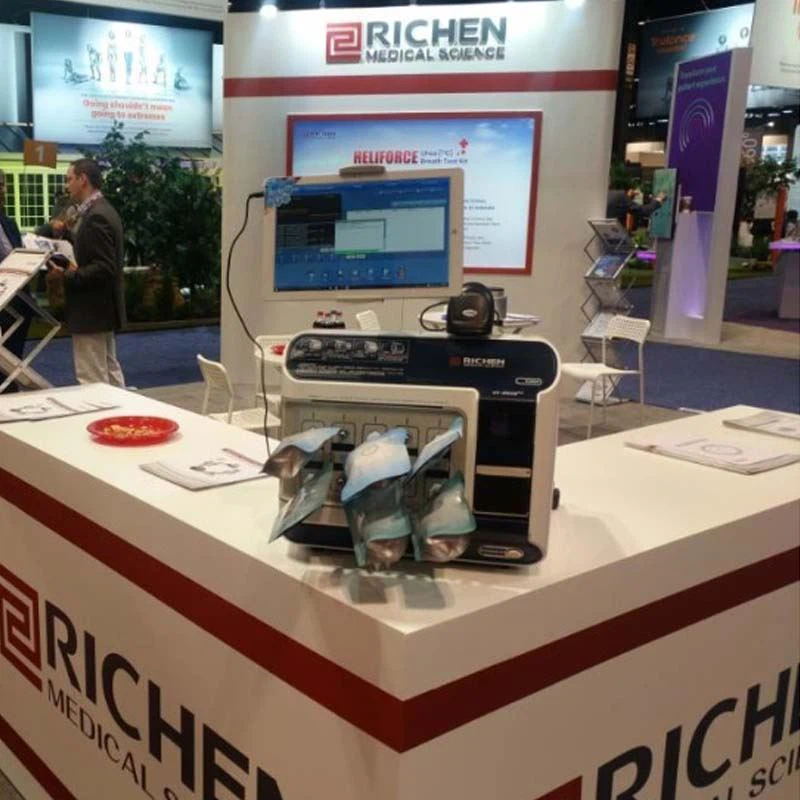

Exhibition show:
